Linear Guidance Systems

Linear Monorail and Guideway Assemblies

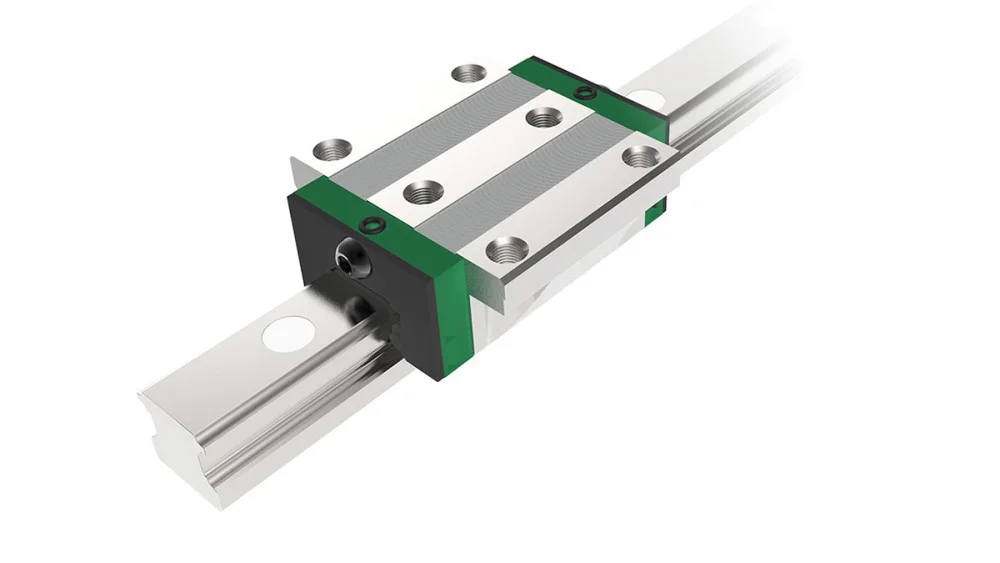

Linear Monorail and Guideway Assemblies represent the most extensive and complex group within the range of monorail guidance systems. They are used where linear guidance systems with high load-carrying capacity and rigidity must move heavy loads with high running and positional accuracy as well as low friction. The guidance systems are preloaded and are suitable for long, unlimited stroke lengths.

Track Roller Guidance Systems

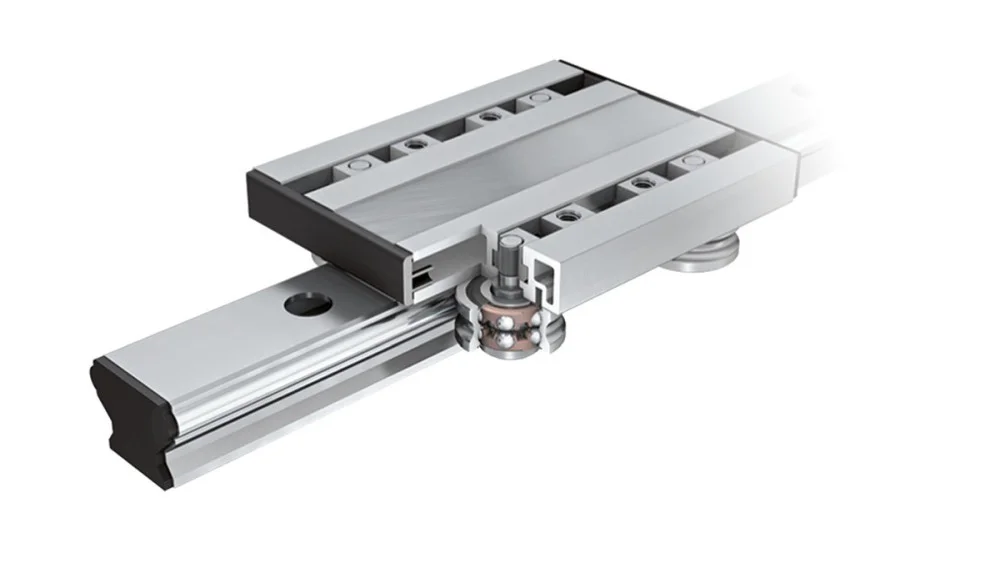

Track Roller Guidance Systems are linear guidance systems that can be configured on a modular basis for an extremely wide variety of applications. Due to their lightweight construction, they are highly suitable for use in handling systems. They are characterized in particular by quiet running, high traverse speeds, long travel distances and the modular concept.

Shaft Guidance Systems

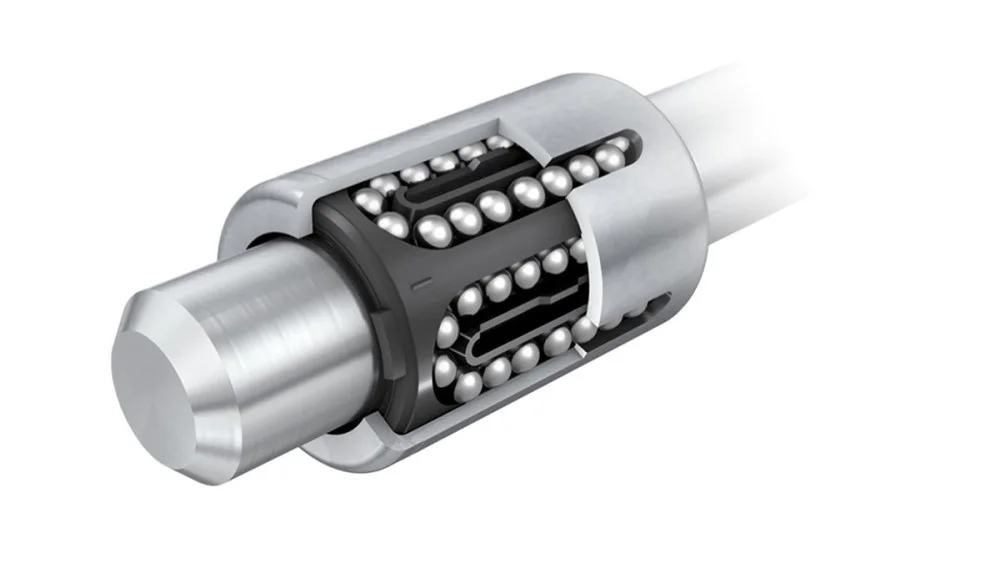

Shaft Guidance Systems are longitudinal guides with ball bearings or plain bearings for various areas of use and application. Linear ball bearings are available in a light range, compact range and machined range. The mating tracks may be in the form of solid shafts, hollow shafts or supported shaft and support rail units.

Multi-Axis Positioning Systems

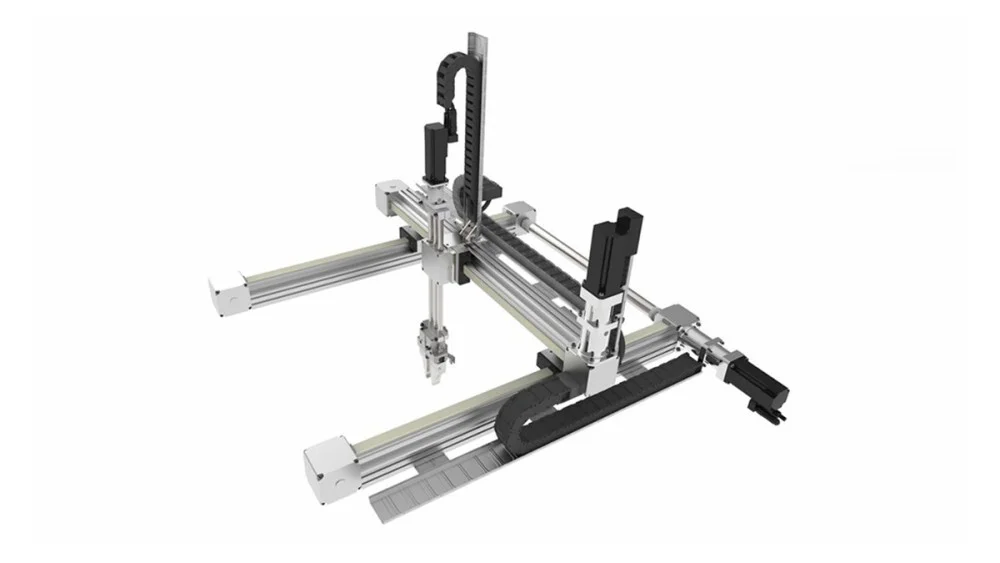

With the proven standard Multi-axis Positioning Systems, many applications can be realized without additional design work. This allows you to complete projects rapidly using components that are already matched to each other. You have considerably less design and planning work and within a very short time, you receive a proposal from us for a positioning system with your required axis travel distances.

Miniature Cage Guidance Systems

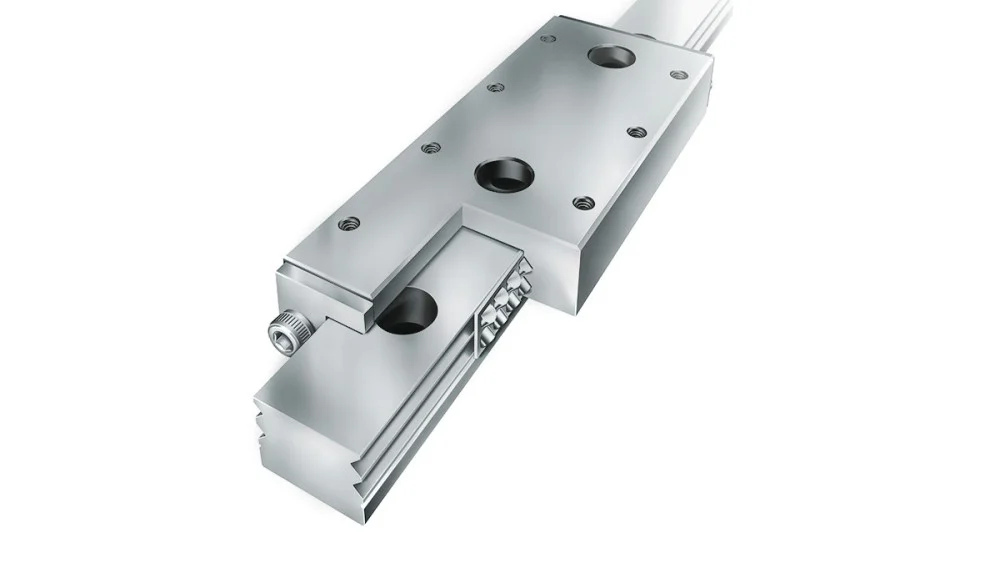

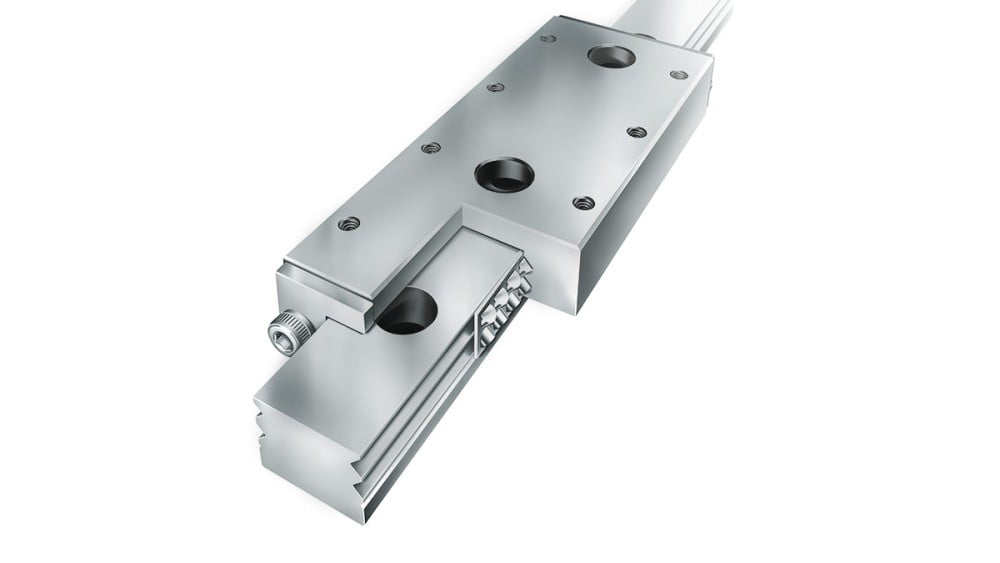

Miniature Carriage Units with Cylindrical Roller Flat Cages are corrosion-resistant, ready-to-fit cage guidance systems for limited stroke lengths. They have a high load-carrying capacity, high rigidity and high accuracy while requiring very little space. Due to their compact design, they can often be used to replace guidance systems that require significantly more space. The units are produced in numerous carriage and guideway lengths, giving cost-effective designs.

Counterstay System

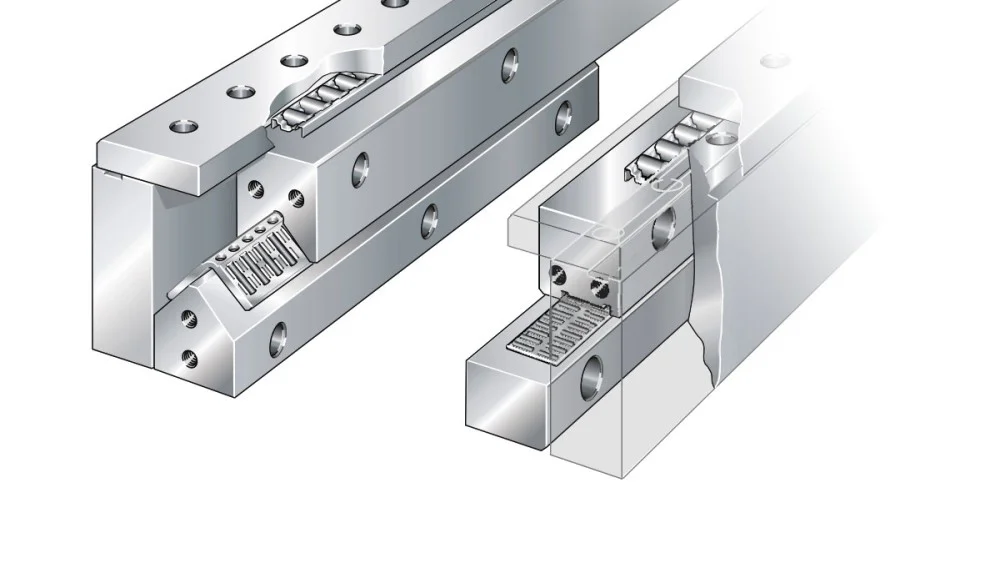

The cages are made from steel or plastic. Metal cages are suitable for more demanding conditions, such as high acceleration, high temperatures and where the ends of the cage are exposed at some point in the operation. Plastic cages are particularly cost-effective for basic operating conditions.

Linear Recirculating Roller Bearing & Guideway Assemblies

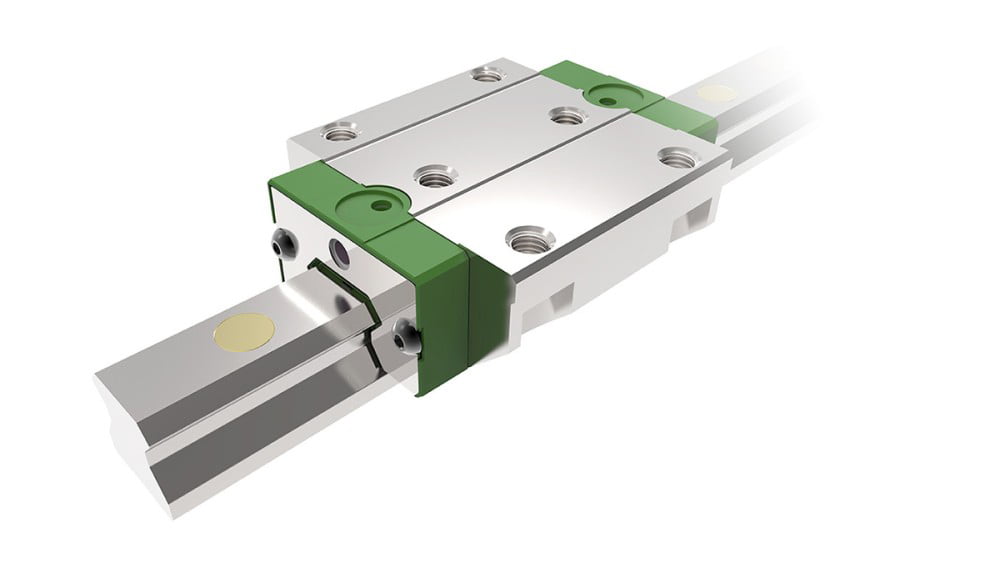

Linear Recirculating Roller Bearing & Guideway Assemblies are, due to the cylindrical rollers, the INA monorail guidance systems with the highest load-carrying capacity and rigidity. They comprise at least one carriage with a full complement roller system, a guideway, integral elastic wipers on the end faces of the carriage, sealing strips on the upper side and underside of the carriage and closing plugs to close off the fixing holes in the guideway.
